Description
-----------------------------------------------------------------------
Semi-automatic manual dimensioning tape sealing machine, with two flat bottom timing belts. The machine carries out, with auto-adhesive tape, the sealing of the bottom and top of same sized american type boxes. The machine can be run by non-specialized operators since its adjustments are quick and easy. The machine, if combined with infeed and outfeed pack tables, represents a simple and convenient packaging station.
Technical Description
-----------------------------------------------------------------------
Bent, painted and bolted steel structure. Single motor side belt drive. Manual adjustments for the different box sizes, quick and easy thanks to handwheels.
Technical Data
-------------------------------------------------------------------------
- Weight: 100 Kg
- Legs: adjustable legs with fix feet
- Electrical power supply: Three-phase 400V – 50 Hz / single-phase (upon request)
- Service temperature: + 5° C to + 35° C
- Electrical protection level: IP 54
- Installed power: 0,25 kW
- Plan dimensions: 990 X 845 mm
Dimensions of the boxes to seal features
----------------------------------------------------------------------
- Length: 150 mm to infinite
- Width: 140 to 510 mm
- Height: 100 to 510 mm
Features
-----------------------------------------------------------------------
- Belts Type: FLAT BELTS
- Standard tape heads: TU2.2 or TU2.3 (tape width 50 mm)
- Productivity: about 1300/1500 boxes per hour
- Box transfer speed: 24 metres / min.
- Bed height (working height): 650 mm
Description
-----------------------------------------------------------------------
Semi-automatic manual dimensioning tape sealing machine, with two flat bottom timing belts. The machine carries out, with auto-adhesive tape, the sealing of the bottom and top of same sized american type boxes. The machine can be run by non-specialized operators since its adjustments are quick and easy. The machine, if combined with infeed and outfeed pack tables, represents a simple and convenient packaging station. Build Quality: Bent, painted and bolted steel structure. Single motor side belt drive. Manual adjustments for the different box sizes, quick and easy thanks to handwheels.
Technical Data
-------------------------------------------------------------------------
- Weight: 135 Kg
- Legs: adjustable legs with fix feet
- Electrical power supply: Three-phase 400V – 50 Hz / single-phase (upon request)
- Service temperature: + 5° C to + 35° C
- Electrical protection level: IP 54
- Installed power: 0,25 kW
- Plan dimensions: 990 X 990 mm
Dimensions of the boxes to seal features
----------------------------------------------------------------------
- Length: 150 mm to infinite
- Width: 140 to 510 mm
- Height: 100 to 510 mm
Features
-----------------------------------------------------------------------
- Belts Type: FLAT BELTS
- Standard tape heads: TU2.2 or TU2.3 (tape width 50 mm)
- Productivity: about 1300/1500 boxes per hour
- Box transfer speed: 24 metres / min.
- Bed height (working height): 650 mm
Technical Description
-----------------------------------------------------------------------
Bent, painted and bolted steel structure. Single motor side belt drive. Manual adjustments for the different box sizes, quick and easy thanks to handwheels
Description
-----------------------------------------------------------------------
Semi-automatic carton sealer for sealing with auto-adhesive tape the top and bottom of random size, American-type boxes. The operator squares the boxes folding the bottom flaps, positions them on the infeed conveyor which incorporates the box centering/holding unit, fills the boxes, folds the top flaps and inserts them into the machine, that adjusts itself on the different box sizes automatically. While the boxes pass through the machine the top and bottom flaps will be sealed simultaneously by the taping heads.
Technical Description
-----------------------------------------------------------------------
Machine frame made of bent, painted and bolted steel sheet. Machine table made of tree metal rollers. The machine incorporates the infeed free roller conveyor, including the box centering unit. The boxes are fed by means of two top and two bottom side drive belts driven by a single motor. Safety protections.
Technical Data
-------------------------------------------------------------------------
- Weight: 180 Kg
- Standard tape heads: TU2.2 or TU2.3 for adhesive tape (tape width 50 mm)
- Electrical power supply: Three-phase 400V – 50 Hz / single-phase (upon request)
- Service temperature: + 5° C to + 35° C
- Electrical protection level: IP 54
- Installed power: 0,22 Kw
- Pneumatic power supply: 6 bar
- Air consumption per box cycle: 5 nl
- Plan dimensions: 1395x965 mm
Dimensions of the boxes to seal features
----------------------------------------------------------------------
- Length: 150 mm to infinite
- Width: 140 to 510 mm
- Height: 100 to 510 mm
Features
-----------------------------------------------------------------------
- Belts Type: FLAT BELTS Standard tape heads: TU2.2 or TU2.3 for adhesive tape (tape width 50 mm)
- Maximum box weight: 6 Kgs/100 mm box lenght
- Box transfer speed: 36 metres per minute
- Bed height (working height): 650 to 750 mm

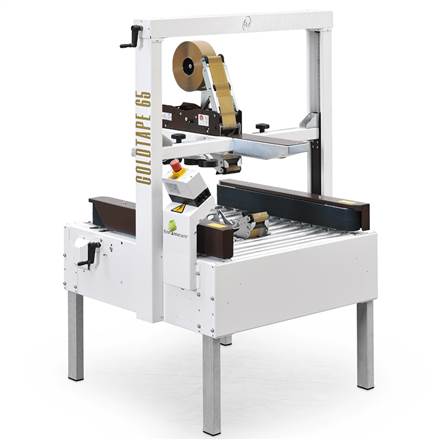

Description
-----------------------------------------------------------------------
Semiautomatic carton sealer with autoadhesive tape for the top and bottom sealing of American-type boxes, for uniform carton size batches, with manual dimensioning. The adjustments are fast and easy, also allowing its use by non-specialist operators. Particularly recommended for high or low boxes. The machine, when combined with infeed and outfeed conveyors, represents a simple, effective and economical packaging station.
Technical Description
-----------------------------------------------------------------------
Main machine structure in bent, bolted and painted sheet steel. The boxes are fed by mean of 4 flat drive belts, 2 bottom and 2 top, driven by a single motor. The regulations for the various formats are carried out using hand-wheels.
Technical Data
-------------------------------------------------------------------------
- Weight: 173 Kg
- Legs: adjustable legs with fix feet
- Electrical power supply: Three-phase 400V – 50 Hz / single-phase (upon request)
- Service temperature: + 5° C to + 35° C
- Electrical protection level: IP 54
- Installed power: 0,25 kW
- Plan dimensions: 990 X 1157 mm
Dimensions of the boxes to seal features
----------------------------------------------------------------------
- Length: 150 mm to infinite
- Length: 150 mm to infinite
- Height: 100 to 660 mm
Features
-----------------------------------------------------------------------
- Belts Type: FLAT BELTS
- Standard tape heads: TU2.2 o TU2.3 (tape width 50 mm)
- Productivity: 1300/1500 boxes per hour
- Box transfer speed: 24 metres / min.
- Bed height (working height): 650 mm
Description
-----------------------------------------------------------------------
Semi-automatic carton sealer for sealing with auto-adhesive tape the top and bottom of random size, American-type boxes. The operator squares the boxes folding the bottom flaps, positions them on the infeed conveyor which incorporates the box centering/holding unit, fills the boxes, folds the top flaps and inserts them into the machine, that adjusts itself on the different box sizes automatically. While the boxes pass through the machine the top and bottom flaps will be sealed simultaneously by the taping heads.
Technical Description
-----------------------------------------------------------------------
Machine frame made of bent, painted and bolted steel sheet. Machine table made of tree metal rollers. The machine incorporates the infeed free roller conveyor, including the box centering unit. The boxes are fed by means of two top and two bottom side drive belts driven by a single motor. Safety protections.
Features
-------------------------------------------------------------------------
- Belts Type: FLAT BELTS
- Standard tape heads: TU3.2 (TU3.3 upon request)
- Maximum box weight: 6 Kgs/100 mm box lenght
- Box transfer speed: 36 metres per minute
- Plan dimensions: mm 1395x1115
- Bed height (working height): 650 to 750 mm
Dimensions of the boxes to seal features
----------------------------------------------------------------------
- Length: 150 mm to infinite
- Width: 165 to 660 mm
- Height: 100 to 660 mm
Texhnical Data
-----------------------------------------------------------------------
- Weight: 200 Kg
- Electrical power supply: three-phase 400V – 50 Hz / single-phase (upon request)
- Service temperature: from + 5° C to + 35° C
- Electrical protection level: IP 54
- Installed power: 0,22 kW
- Pneumatic power supply: 6 bar
- Air consumption per box cycle: 6 nl
Description
-----------------------------------------------------------------------
Semi-automatic manually adjustable carton sealer for the tape sealing of the top and bottom flaps of uniform american type boxes.The changeovers are fast and easy, no need of skilled personnel. The boxes are fed by side belts, driven by a single motor ensuring a smooth carton transport. The result is a perfect aligning of the flaps and an optimum sealing, through the tape head TU. The machine, if combined with infeed and outfeed pack tables, represents a simple and convenient packaging station.
Technical Description
-----------------------------------------------------------------------
Bent, bolted and painted steel structure. Single motor side belt drive. Manual adjustments for the different box sizes.
Features
-------------------------------------------------------------------------
- Belts Type: VERTICAL BELTS
- Standard tape heads: TU2.2 o TU2.3 (tape width 50 mm)
- Productivity: about 1300-1500 boxes per hour
- Box transfer speed: 24 metres per minute
- Bed height (working height): 650 mm
Dimensions of the boxes to seal features
----------------------------------------------------------------------
- Length: 150 to infinite
- Width: 100 to 510 mm
- Height: 100 to 510 mm
Texhnical Data
-----------------------------------------------------------------------
- Weight: 120 Kg
- Legs: adjustable legs with fix feet
- Electrical power supply: Three-phase 400V – 50 Hz / single-phase (upon request)
- Service temperature: from + 5° C to + 35° C
- Electrical protection level: IP 54
- Installed power: 0,22 kW
- Overall plan dimensions: 990 x 890 mm
Description
-----------------------------------------------------------------------
Self-dimensioning carton sealer for sealing with auto-adhesive tape the top and bottom of random size, American-type boxes. In semi-automatic working cycle an operator squares the boxes folding the bottom flaps, fills the boxes, folds the top flaps and insert them into the machine. In automatic working cycle the boxes arriving into the machine with the top flaps folded. The boxes arriving into the machine activate the switches that will adjust the timing belts and top taping head frame on the box sizes. While the boxes pass through the machine the top and bottom flaps will be sealed by the taping heads simultaneously.
Technical Description
-----------------------------------------------------------------------
Machine frame made of bent, painted and bolted steel sheet. Machine table made of tree metal rollers. The boxes are fed by means of two bottom side drive belts driven by a single motor. Safety transparent protections (CE certified). Control panel with working cycle management in automatic function.
Features
-------------------------------------------------------------------------
- Belt Type: VERTICAL BELTS
- Standard tape heads: TU2.2 or TU2.3 for adhesive tape (tape width 50 mm)
- Productivity: about 350/500 boxes for hour
- Maximum box weight: 6 Kgs/100 mm box lenght
- Box transfer speed: 36 metres per minute
- Bed height (working height): 650 to 750 mm
Dimensions of the boxes to seal features
----------------------------------------------------------------------
- Length: 150 to infinite
- Width: 200 to 510 mm
- Height: 100 to 510 mm
Texhnical Data
-----------------------------------------------------------------------
- Weight: 295 Kg
- Electrical power supply: three-phase 400V / single-phase (upon request)
- Service temperature: + 5° C to + 35° C
- Electrical protection level: IP 54
- Installed power: 0,22 kW
- Pneumatic power supply: 6 bar
- Air consumption per box cycle: 9 nl
- Overall plan dimensions: 1150x980 mm
Description
-----------------------------------------------------------------------
Semiautomatic carton sealer with auto - adhesive tape, which seals the bottom of American-type boxes in uniform size batches, with fast and easy manual regulation. Standard positioning is at the exit of automatic carton erectors GOLDFLEX 56 e GOLDFLEX 58. The machine can also be used by non-specialist operators and, if combined with entrance and exit conveyors, represents a simple, effective and economical packaging station.
Technical Description
-----------------------------------------------------------------------
Main machine structure in bent, bolted and painted sheet steel. The boxes are fed by means of 2 lower side drive belts driven by a single motor. The regulations for the various formats are carried out by means of handwheels.
Features
-------------------------------------------------------------------------
- Belt Type: VERTICAL BELTS
- Standard tape heads: TU2.2 or TU2.3 (tape width 50 mm)
- Legs: adjustable legs with fix feet
- Productivity: about 1300-1500 boxes for hour
- Box transfer speed: 24 metres per minute
- Bed height (working height): 650 mm
Dimensions of the boxes to seal features
----------------------------------------------------------------------
- Length: 150 to infinite
- Width: 100 to 510 mm
- Height: 100 to 510 mm
Texhnical Data
-----------------------------------------------------------------------
- Weight: 107 Kg
- Electrical power supply: Three-phase 400V – 50 Hz / single-phase (upon request)
- Service temperature: from + 5° C to + 35° C
- Electrical protection level: IP 54
- Installed power: 0,22 kW
- Overall plan dimensions: 990 x 890 mm
Description
-----------------------------------------------------------------------
Semi-automatic bottom carton gluing machine manual adjustable on different box sizes. The operator squares the boxes folding the bottom flaps or the boxes arrive from an automatic case former already squared and with the bottom flaps folded. While the boxes pass through the machine the bottom flaps will be slightly opened, to allow the nozzles to spray the hot glue, before the final closure. Before out-feeding the box, a pneumatic pressure group pushes down the flaps from the box inside so as to assure a perfect gripping of the glue. The machine can be either used in a stand-alone version, or combined with one automatic case erector (Goldflex 56) or to one semi-automatic case erector (Goldflex 056).
Technical Description
-----------------------------------------------------------------------
Machine frame made of bent, painted and bolted/riveted sheet steel. Safety transparent protections according to the safety standards laws in force (CE certified). 2 vertical timing belts are motorized through one motor. The dimensions of the box to seal are adjusted by acting on hand-wheels.
Features
-------------------------------------------------------------------------
- Belt Type: VERTICAL BELTS
- Maximum box weight: 6 Kgs for each 100 mm box length
- Box transfer speed: 36 metres per minute (higher speed on request)
- Productivity: 400/500 boxes/hour
- Workbench height: 650 mm to750 mm
Dimensions of the boxes to seal features
----------------------------------------------------------------------
- Length: 220 mm to 450 mm
- Width: 150 to 450 mm
- Height: H 175 to 500 mm
Texhnical Data
-----------------------------------------------------------------------
- Weight: 290 Kg
- Electrical power supply: Three-phase 400V/50Hz (single-phase upon request)
- Service temperature: + 5° C to + 35° C
- Electrical protection level: IP 55
- Installed power: 0,25 kW
- Pneumatic power supply: 6 bar
- Air consumption: 6,5 nl
- Plan dimensions: mm 2850x1000 (without hot-melt gluer)
Description
-----------------------------------------------------------------------
Semiautomatic carton sealer with autoadhesive tape for the top and bottom sealing of American-type medium and large boxes, for uniform carton size batches, manual dimensioning. The adjustments are fast and easy, also allowing its use by non-specialist operators. The machine, if infeed and outfeed conveyors, represents a simple, fast and economical packaging station.
Technical Description
-----------------------------------------------------------------------
Main machine structure in bent, bolted and painted sheet steel. The boxes are fed by means of 2 bottom side drive belts driven by a single motor. The regulations for the various formats are carried out by means of hand-wheels.
Features
-------------------------------------------------------------------------
- Belt Type: VERTICAL BELTS
- Standard tape heads: TU2.2 or TU2.3 (tape width 50 mm)
- Legs: adjustable legs with fix feet
- Productivity: about 1300-1500 boxes for hour
- Box transfer speed: 24 metres per minute
- Bed height (working height): 650 mm
Dimensions of the boxes to seal features
----------------------------------------------------------------------
- Length: 150 to infinite
- Width: 100 to 660 mm
- Height: 120 to 660 mm
Texhnical Data
-----------------------------------------------------------------------
- Weight: 145 Kg
- Electrical power supply: Three-phase 400V – 50 Hz / single-phase (upon request)
- Service temperature: from + 5° C to + 35° C
- Electrical protection level: IP 54
- Installed power: 0,22 kW
Description
-----------------------------------------------------------------------
Semiautomatic carton sealer with autoadhesive tape for the top and bottom sealing of American-type medium and large boxes, for uniform carton size batches, manual dimensioning. The adjustments are fast and easy, also allowing its use by non-specialist operators. The machine, if combined with infeed and outfeed conveyors, represents a simple, fast and economical packaging station.
Technical Description
-----------------------------------------------------------------------
Main machine structure in bent, bolted and painted sheet steel. The boxes are fed by means of 2 lower side drive belts driven by a single motor. The regulations for the various formats are carried out by means of hand-wheels.
Features
-------------------------------------------------------------------------
- Belt Type: VERTICAL BELTS
- Standard tape heads: TU2.2 or TU2.3 (tape width 50 mm)
- Legs: adjustable legs with fix feet
- Productivity: about 1300-1500 boxes for hour
- Box transfer speed: 24 metres per minute
- Bed height (working height): 650 mm
Dimensions of the boxes to seal features
----------------------------------------------------------------------
- Length: 150 to infinite
- Width: 100 to 810 mm
- Height: 120 to 810 mm
Texhnical Data
-----------------------------------------------------------------------
- Weight: 170Kg
- Electrical power supply: Three-phase 400V – 50 Hz / single-phase (upon request)
- Service temperature: from + 5° C to + 35° C
- Electrical protection level: IP 54
- Installed power: 0,22 kW
Description
-----------------------------------------------------------------------
Description
-----------------------------------------------------------------------
Semiautomatic carton sealer with autoadhesive tape for the top and bottom sealing of American-type medium and large boxes, for uniform carton size batches, manual dimensioning. The adjustments are fast and easy, also allowing its use by non-specialist operators. The machine, if combined with infeed and outfeed conveyors, represents a simple, fast and economical packaging station.
Technical Description
-----------------------------------------------------------------------
Main machine structure in bent, bolted and painted sheet steel. The boxes are fed by 2 bottom side drive belts driven by a single motor. The regulations for the various formats are carried out by means of hand-wheels.
Features
-------------------------------------------------------------------------
- Belt Type: VERTICAL BELT
- Standard tape heads: TU2.2 or TU2.3 (tape width 50 mm)
- Legs: adjustable legs with fix feet
- Productivity: about 1300-1400 boxes for hour
- Box transfer speed: 24 metres per minute
- Bed height (working height): 650 mm
- Guards: movable hinged panels in trasparent methyl acrylate with safety microswitches
Dimensions of the boxes to seal features
----------------------------------------------------------------------
- Length: 220 to 650 mm
- Width: 100 to 510 mm
- Height: 100 to 510 mm
Texhnical Data
-----------------------------------------------------------------------
- Weight: 270 Kg / 595 lb
- Electrical power supply: Three-phase 400V – 50 Hz / single-phase (upon request)
- Service temperature: from + 5° C to + 35° C
- Electrical protection level: IP 54
- Pneumatic power supply: 6 bar
- Air consumption per box cycle: 2,5 nl
- Installed power: 0,25 kW
Technical Description
-----------------------------------------------------------------------
Main machine structure in bent, bolted and painted sheet steel. The boxes are fed by means of 2 lower side drive belts driven by a single motor. The regulations for the various formats are carried out by means of hand-wheels.
Features
-------------------------------------------------------------------------
- Belt Type: VERTICAL BELTS
- Standard tape heads: TU2.2 or TU2.3 (tape width 50 mm)
- Legs: adjustable legs with fix feet
- Productivity: about 1300-1500 boxes for hour
- Box transfer speed: 24 metres per minute
- Bed height (working height): 650 mm
Dimensions of the boxes to seal features
----------------------------------------------------------------------
- Length: 150 to infinite
- Width: 100 to 810 mm
- Height: 120 to 810 mm
Texhnical Data
-----------------------------------------------------------------------
- Weight: 170Kg
- Electrical power supply: Three-phase 400V – 50 Hz / single-phase (upon request)
- Service temperature: from + 5° C to + 35° C
- Electrical protection level: IP 54
- Installed power: 0,22 kW
Description
-----------------------------------------------------------------------
Automatic carton sealer with manual box dimensioning and flap closer for sealing with hot glue. It glues and folds the four top and four bottom flaps of uniform size, American-type boxes. The regulations are fast and easy. To be used on fully automatic lines, without the control of operatives. The machine is designed to be combined with the melting and glue application units most widely available on the market.
Technical Description
-----------------------------------------------------------------------
Machine frame made of bent, painted and bolted/riveted sheet steel. Safety transparent protections according to the safety standards laws in force (CE certified). 2 vertical timing belts are motorized through one motor. The dimensions of the box to seal are adjusted by acting on hand-wheels.
Features
-------------------------------------------------------------------------
- Belt Type: VERTICAL BELTS
- Legs: adjustable legs with fix feet
- Box transfer speed: 24 metres per minute (higher speed on request)
- Maximum box weight: 6 Kg for each 100mm box length
- Bed height (working height): 650 mm to 750 mm
Dimensions of the boxes to seal features
----------------------------------------------------------------------
- Length: 150 to 400 mm
- Width: 150 to 450
- Height: 100 to 510 mm
Texhnical Data
-----------------------------------------------------------------------
- Weight: 300 Kg
- Electrical power supply: three-phase 400V / 50 Hz (single-phase upon request)
- Pneumatic power supply: 6 bar
- Air consumption per box cycle: 2,5 nl
- Electrical protection level: IP 55
- Air consumption per box cycle: 2,5 nl
- Installed power : 0,25 kW
