The new MTL compact laser system combines the proven precision and quality of the Lasercomb laser cutting systems with a low space requirement and a previously unknown price/performance ratio. With an installation area of only 5 m² (on Top), the MTL operates with a high-quality laser integrated into a very stable frame.
Due to state-of-the-art production technology, the MTL provides maximum precision at a low-cost introductory price.
Working area
-----------------------------------------------------------------
- 1500 mm x 1040 mm ( MTL1510 )
- 1500 mm x 2100 mm ( MTL1521 )
- 1500 mm x 3000 mm ( MTL1530 )
Laser Power
-----------------------------------------------------------------
- 1000 W – 2000 W Rofin Sinar DC Laser
Speed
-----------------------------------------------------------------
- Cutting speeds up to 30m/min
Controller
-----------------------------------------------------------------
- Modern PC controller
- Graphical user interface
- Comprehensive diagnostic tools
- Material database
Options
-----------------------------------------------------------------
- Indexing
- Precitec Multi lens Nozzle
- Steel cutting option
- Comprehensive diagnosis and remote maintenance via Lasercomb PartnerNet
Working area
-----------------------------------------------------------------

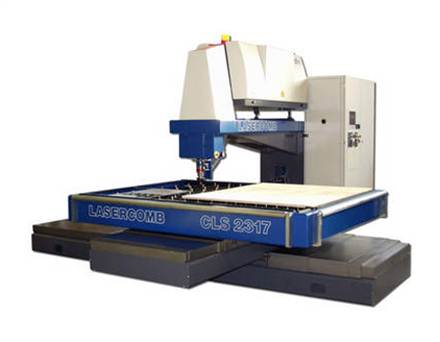

- CLS1712 – 1700 mm x 1250 mm (67 x 49 inch)
- CLS2115 – 2100 mm x 1500 mm (83 x 59 inch)
- CLS2317 – 2300 mm x 1700 mm (90 x 67 inch)
Laser Power
-----------------------------------------------------------------
- 1000 W – 2000 W Rofin Sinar DC Laser.
Speed
-----------------------------------------------------------------
- Cutting speeds up to 15m/min
Controller
-----------------------------------------------------------------
- Modern PC controller
- Graphical user interface
- Comprehensive diagnostic tools
Options
-----------------------------------------------------------------
- A.C.P. (Advanced Crash Protection)
- Precitec High-Pressure Nozzle with Double Lens Holder
- Metal cutting (up to 10 mm)
- Handling support
- Comprehensive diagnosis and remote maintenance via Lasercomb PartnerNet
You are looking for a large format lasermachine for the cutting of flatbed dies for the packaging industry, dies for the automotive industry and high precision dies for large format dies used in the electronic industry.
Lasercomb can provide the solution for your demand with the PTS-lasermachine.
Flatbed dies with a maximum size of 3000 x 1500 mm or 3000 x 2200 mm or 4000 x 2200 can be cut on a PTS, the size depends on the selected machine format.
If the format 3000 x 1500 mm for flatbed dies is selected the PTS can be further equipped with a rotary unit.
Equipped with modern Eckelmann touch Screen Monitors, menu-guided software, material-data base, visual presentation of the job to be cut on the screen the PTS is easy to operate. Remote Control via the Internet from Lasercomb Service Department is possible if a Internet link is available. In case of loss of power and machine stop the programm which is cut at the moment of power loss can be re-entered and the running job can be finished.
